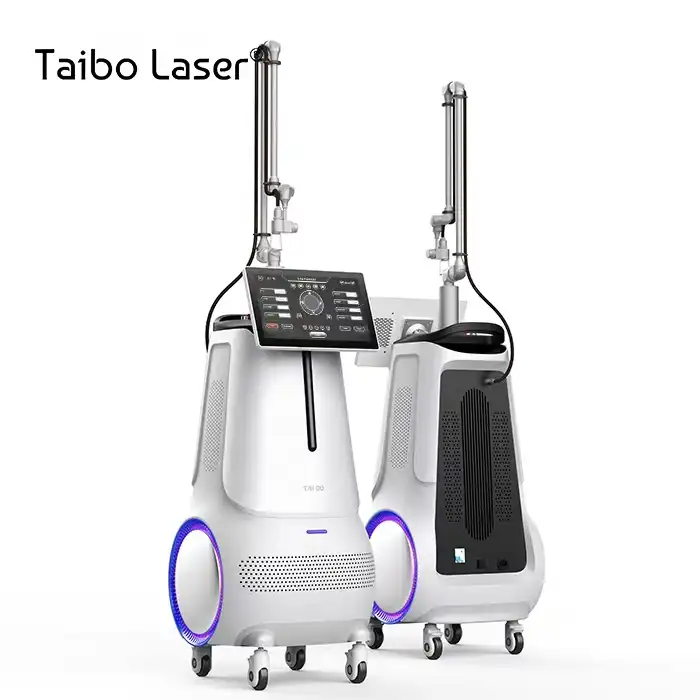

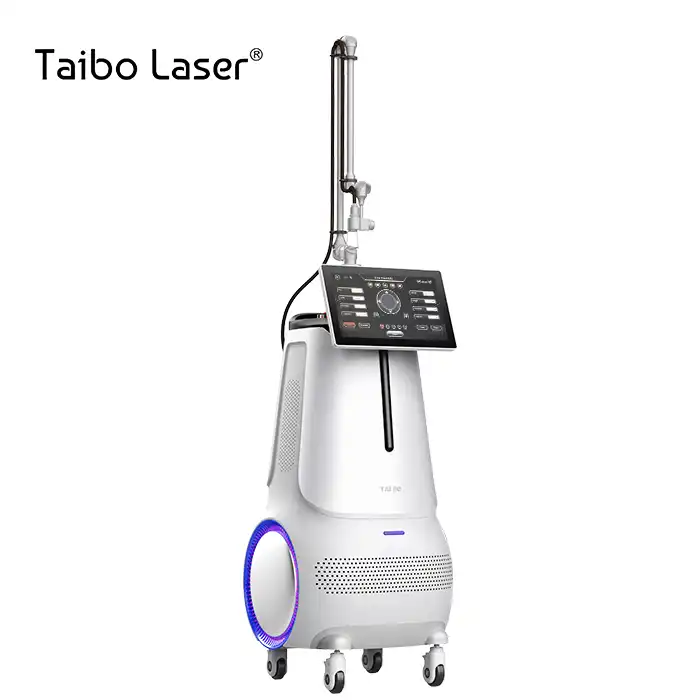

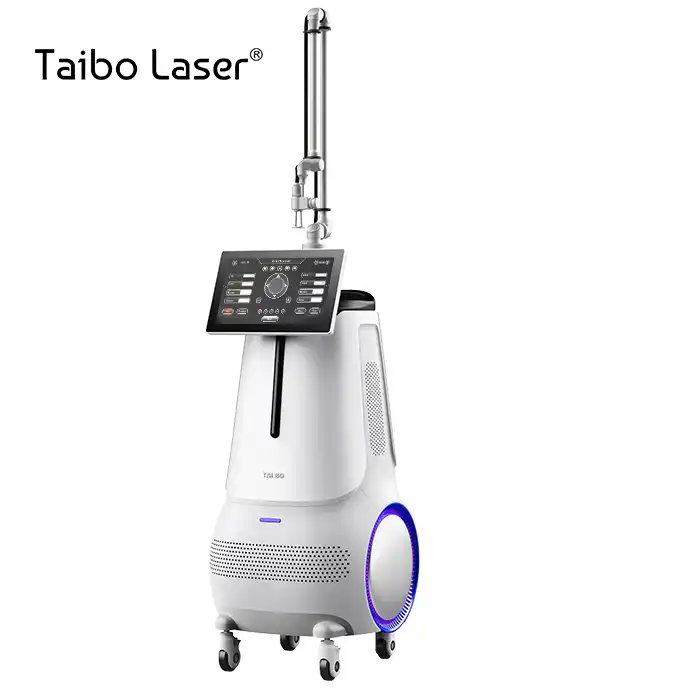

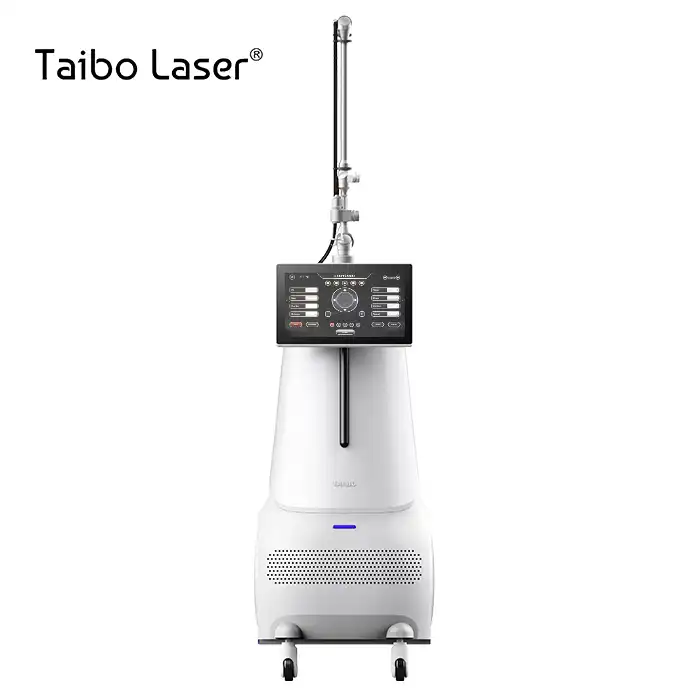

CO2 Fractional Laser2.0
Laser wavelength:10.6µm±0.1µm
Laser power:1-40W（actual＞40W）
Output mode:Dot matrix mode/pulse mode (long pulse and ultra pulse mode)/private mode/vulvar mode
cooling system:Air-cooled
Light guide system:7 joint light guide arm
Indicating light wavelength:635nm
Spot size:≥0.1mm focus
Operating Voltage:AC 100-240v~，50/60Hz
Display size:15.6 inch color touch screen
Relative working temperature:5℃～40℃
Relative working humidity:≤80%
Atmospheric pressure range:700hPa～1060hPa
CO2 Fractional Laser2.0
Xi’an Taibo Laser Beauty Company is the professional laser beauty euipment manufactuer with our own factory over 15 years produce experience and 15 years export experience.
Established in 2009, and having our own R&D, factory, international sales team, overseas distributors and after slaes services team, Taibo beauty takes the lead in applying advanced technologies. Through 15 years developing, we have built a reliable sales and services system. Our products are exported to more than 180 countries in worldwide market.CO2 Fractional Laser2.0 is our new product.
Technical Characteristics
Carbon dioxide laser is a way to convert excitation gas into laser. It uses its unique wavelength of 10600nm laser, which has high light energy density and extremely small divergence angle. Through the light guide system, the conversion of the hand tool, the laser of different patterns is transmitted, which is suitable for cutting, gasification and coagulation operations. Surface repair for exfoliative surgery.

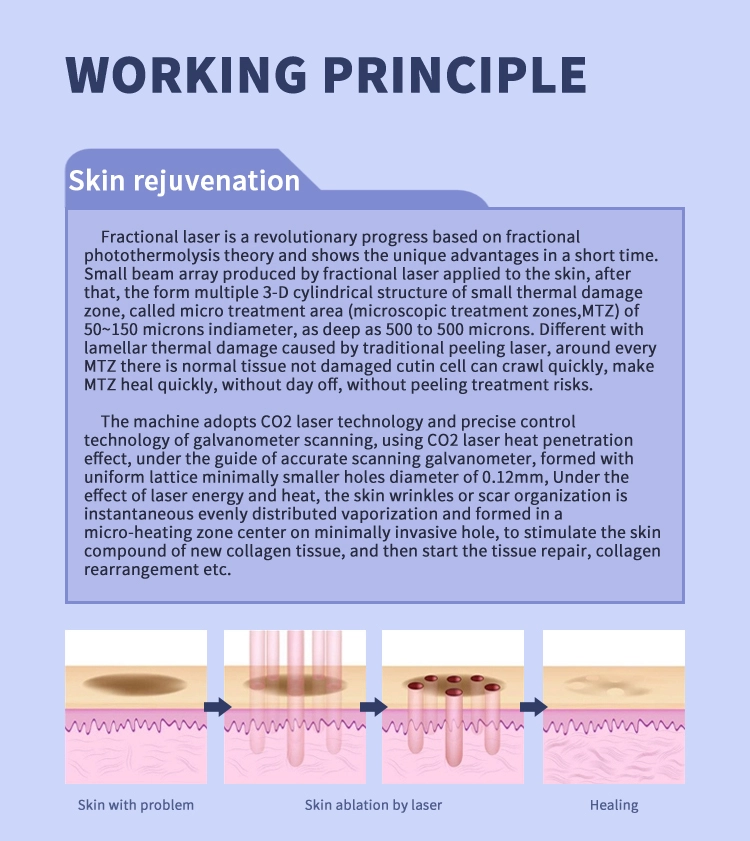

Working principle
After the laser beam is conducted through the focusing mirror, the high-temperature energy is focused to treat tissue vaporization, cutting, cauterization, and coagulation operations.
Clinical features
3.3.1 Principles of Treatment
The CO2 Fractional Laser2.0 carbon dioxide fractional laser treatment instrument is a way of radio frequency excitation to transform gas into laser. It has the characteristics of thin beam and high energy density. Then it is conducted by the light guide system to the surface of the affected area to achieve the coagulation operation of the target tissue. At the same time, it can also be used for radiation therapy.
3.3.2 Clinical features
This equipment has made many cutter heads for clinical use, which can be used in different occasions:
lattice：There are three types, one is exfoliation, the other is micro exfoliation and non-exfoliation. Different patients can be treated with different treatment methods, which saves time and experience, and targets skin rejuvenation, stretch marks, and epidermal rejuvenation. , Deep cleansing has a very good effect
Cut：Long pulse treatment can be done according to needs, or ultra-pulse method can be used to treat the affected area. This blade has a good effect on cutting large areas and warts and protrusions.

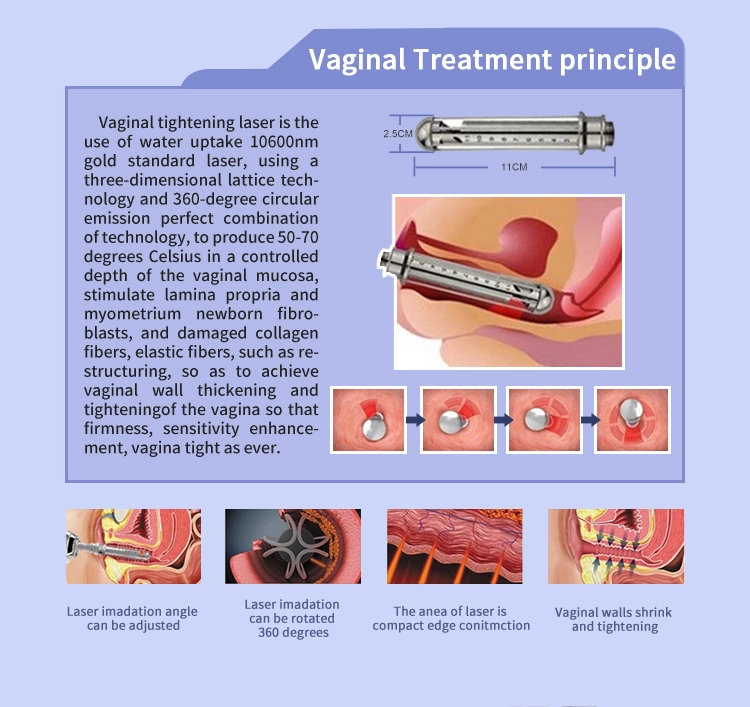

Private：In order to make the private treatment more convenient and simple, it is equipped with two kinds of lenses, 45 degrees and 360 degrees, which can be used to treat the space or one side of the affected area. In short, the laser emitted by the carbon dioxide laser treatment instrument will be on the human epidermis. A burning zone composed of laser action points and intervals is formed. Each laser action point is composed of a single or several high-energy laser pulses, which can penetrate directly into the dermis, instantly vaporize the tissues of the diseased area, and stimulate collagen production at the same time. Proliferation, which in turn initiates a series of skin reactions such as tissue repair and collagen reorganization. The treatment itself is safer and can treat any part of the body

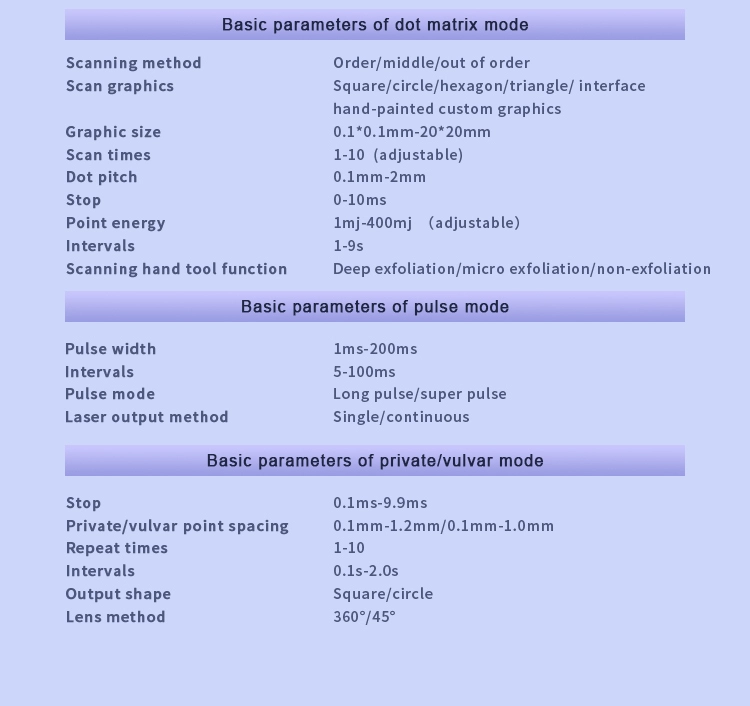

Technical Parameters
|
Basic parameters of dot matrix mode |
|
|
scanning method |
Order/middle/out of order |
|
Scan graphics |

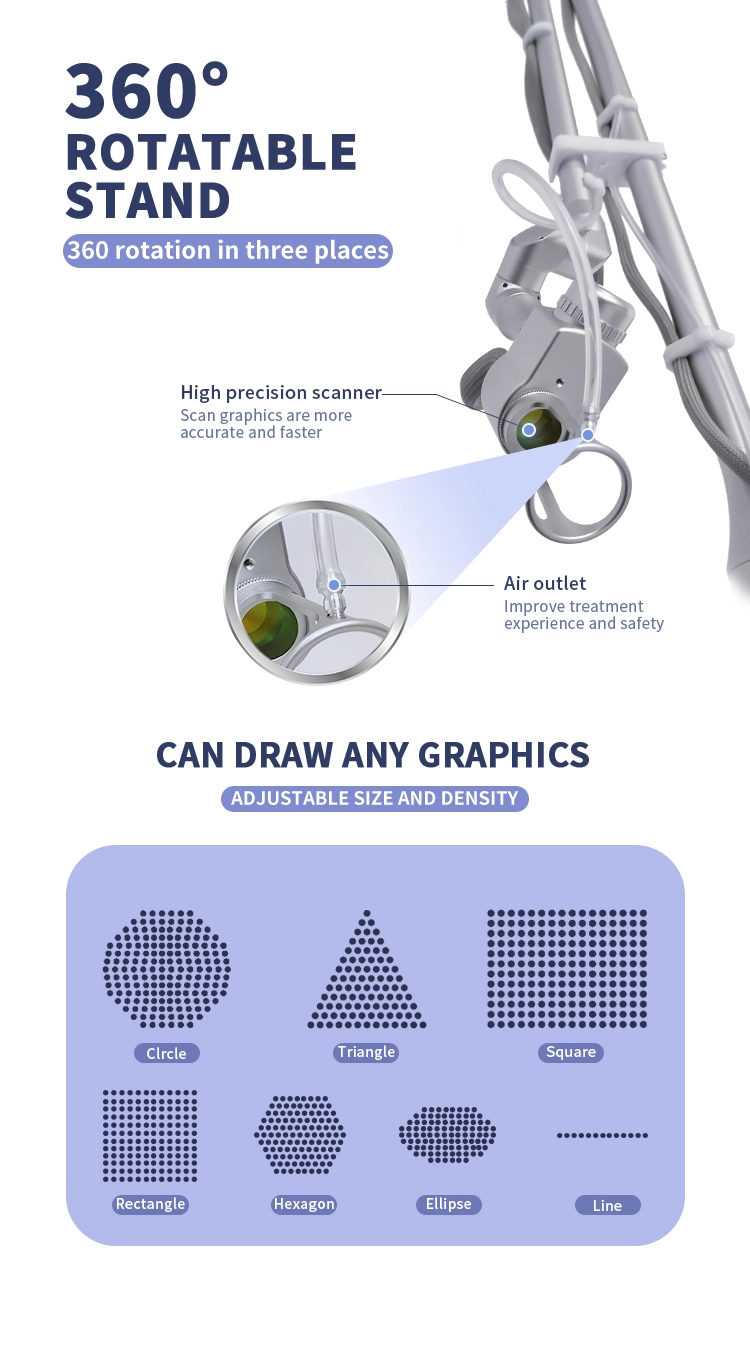

Square/circle/hexagon/triangle/interface hand-painted custom graphics |
|
Graphic size |
0.1*0.1mm-20*20mm |
|
Scan times |
1-10 times （Adjustable） |
|
Dot pitch |
0.1mm-2mm |
|
Stop |
0-10ms |
|
Point energy |
1mj-400mj （Adjustable） |
|
Intervals |
1-9s |
|
Scanning hand tool function |
Deep exfoliation/micro exfoliation/non-exfoliation |
|
Basic parameters of pulse mode |
|
|
Pulse width |
1ms-200ms |
|
Intervals |
5-100ms |
|
Pulse mode |
Long pulse/super pulse |
|
Laser output method |
Single/continuous |
|
Basic parameters of private/vulvar mode |
|
|
Stop |
0.1ms-9.9ms |
|
Private/vulvar point spacing |
0.1mm-1.2mm/0.1mm-1.0mm |
|
repeat times |
1-10 times |
|
Intervals |
0.1s-2.0s |
|
Output shape |
Square/circle |
|
Lens method |
360°/45° |
Instructions
The light guide arm is the working component of the instrument treatment. According to the treatment parameters set by the host, a laser is generated for treatment.

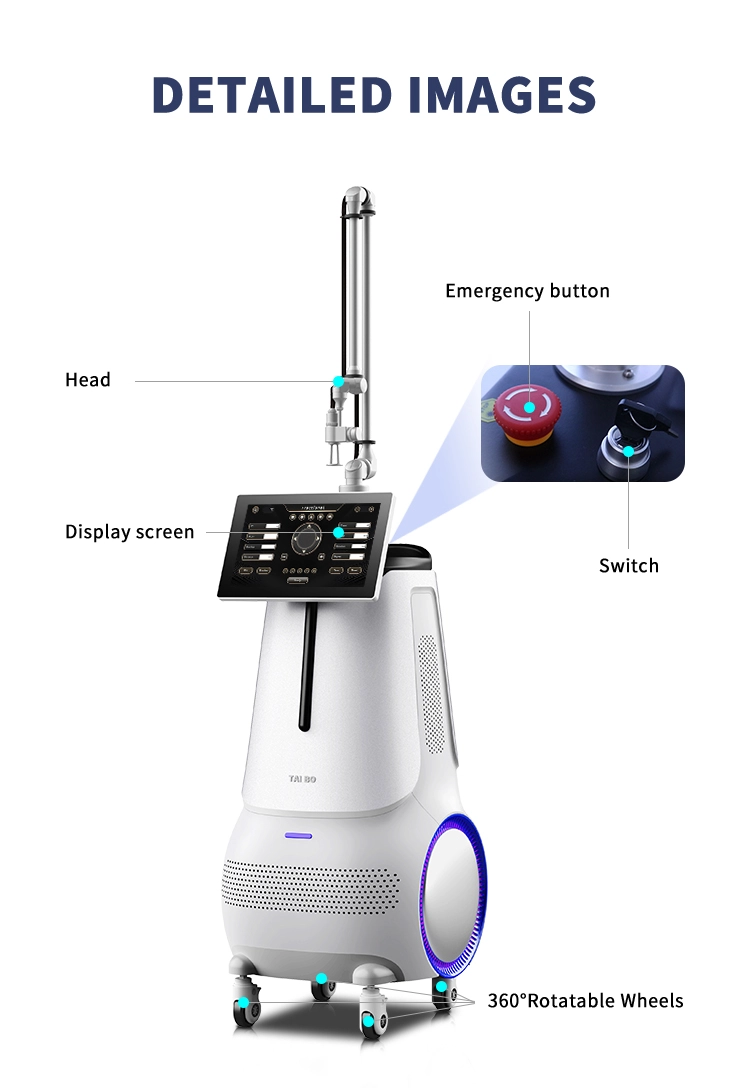

The red button is an emergency switch that is an emergency stop switch. In an emergency, press this button to disconnect the power supply of the control system and the laser, then rotate to the right and eject the button to restore normal.
The foot switch is to prevent accidental light emission in the ready state.
There is a circuit breaker on the back of the host to control the power on and off of the host. When the device is not in use, the button on the button switch should pop out to restore normal, and the circuit breaker is also set to "OFF" to prevent improper use.
Starting Program
① Check to make sure that the light guide arm is completely fixed to the equipment base. (Note: The light guide arm must be connected to the designated position in accordance with the connection method in 5.3 above, otherwise it may cause a light emission hazard and cause other hazards)
② Check to make sure that the foot switch has been connected to the position marked "Foot Switch".
③ After completing steps 1 and 2 above, insert the three-core power plug (power cord) into a socket that can withstand the corresponding current.
④ Turn on the circuit breaker on the back of the main unit, press the button switch, and turn the emergency stop switch to the right to make it in the released state. At this time, the instrument starts up and the LCD screen starts to display images.
OEM/ODM Service
At Xi’an Taibo Laser Beauty, we provide fractional co2 laser device OEM services to meet the unique branding and specification needs of our clients. We work closely with your team to customize the laser device according to your preferred technical parameters and design requirements. Whether you need custom branding, software, or additional training support, our team ensures a seamless partnership to create the perfect product for your business.
Certification
Ours complies with international safety and quality standards. It is certified by:
CE Certification
ISO 13485 Medical Device Quality Management Systems
FDA (Pending approval)
These certifications guarantee that you are investing in a reliable and compliant medical device.
Shipment

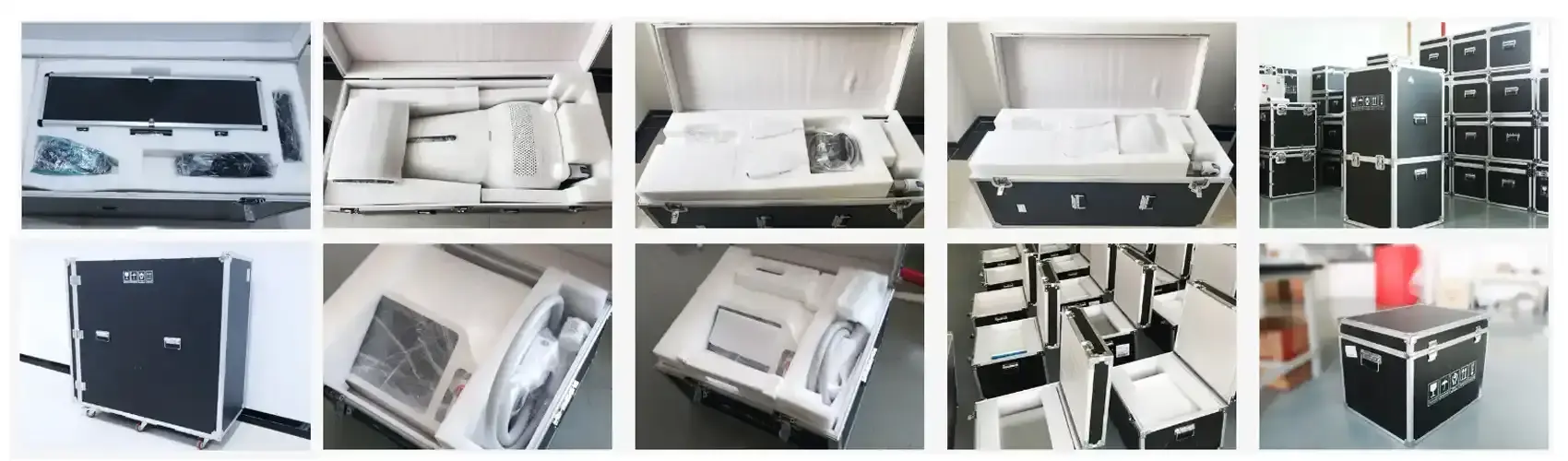

Package
Contact Us
For more information or inquiries, please contact us at the CO2 Fractional Laser2.0, please contact us at susan@taibobeauty.com or WhatsApp +8618292082658
