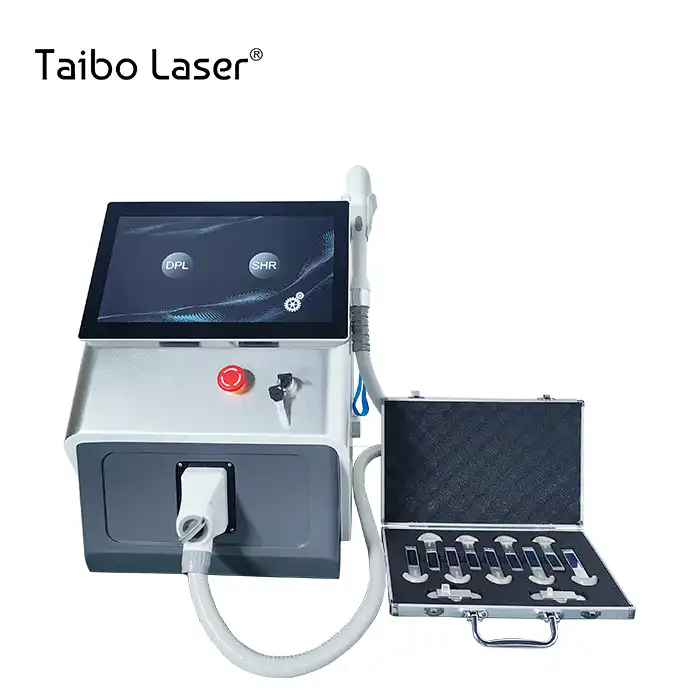

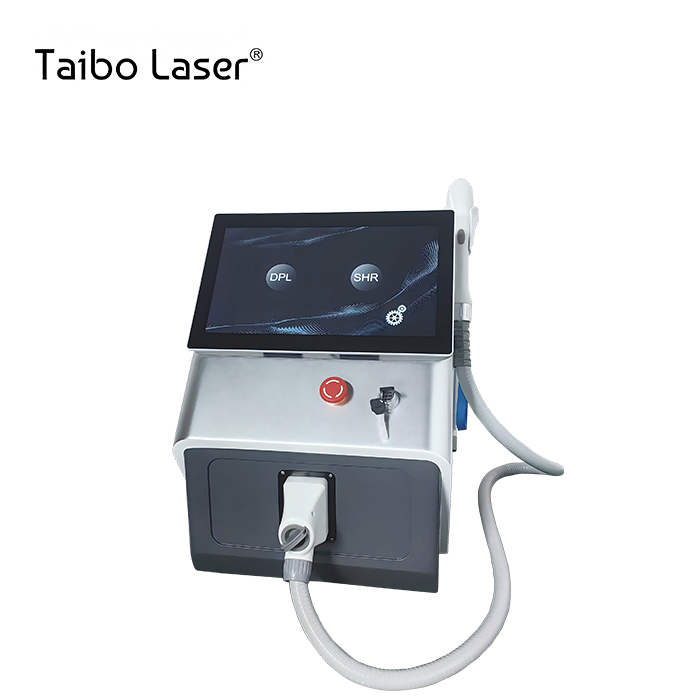

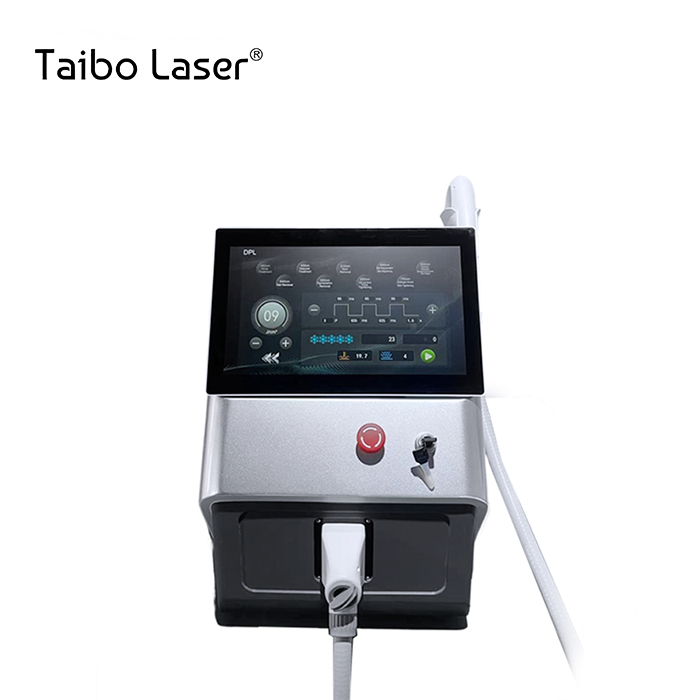

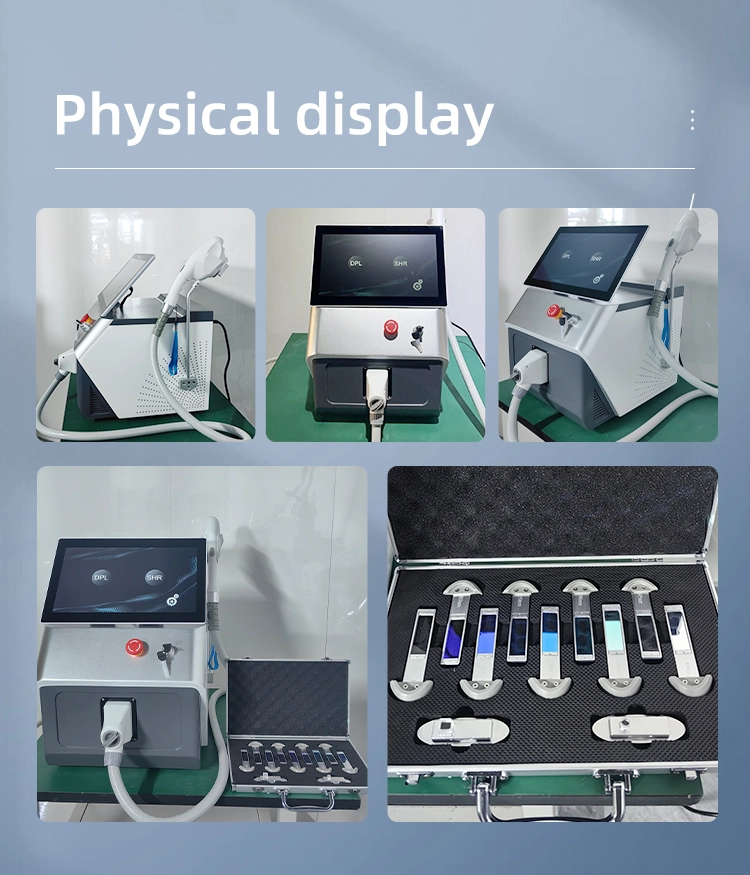

Portable DPL machine
Output power:3500W

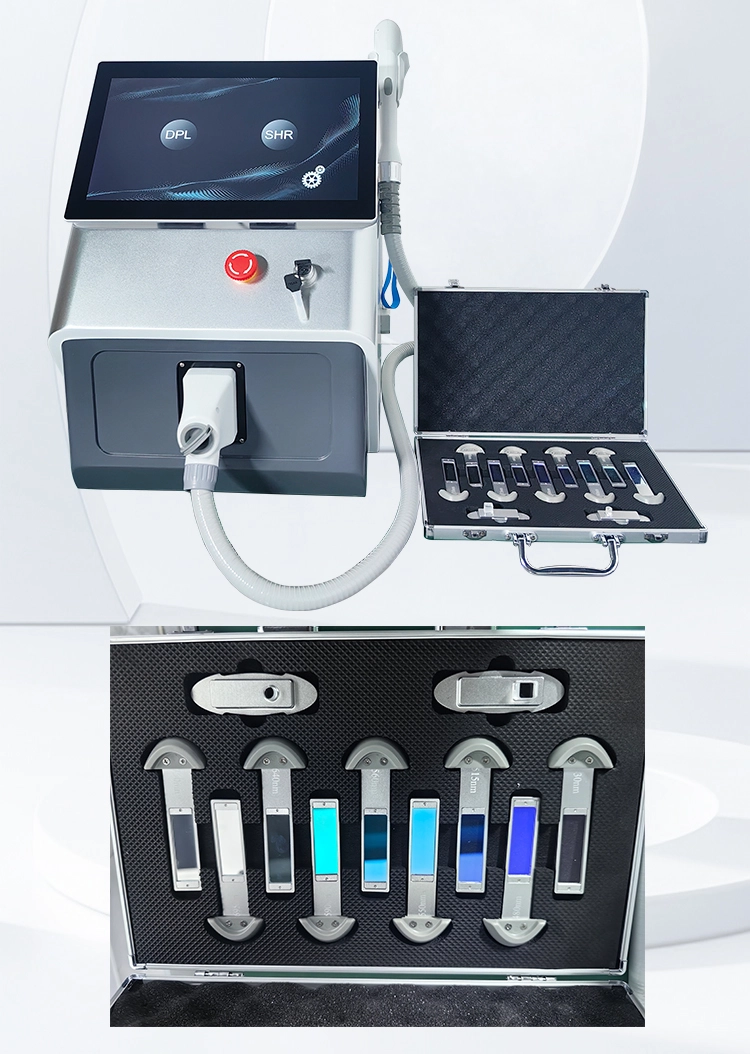

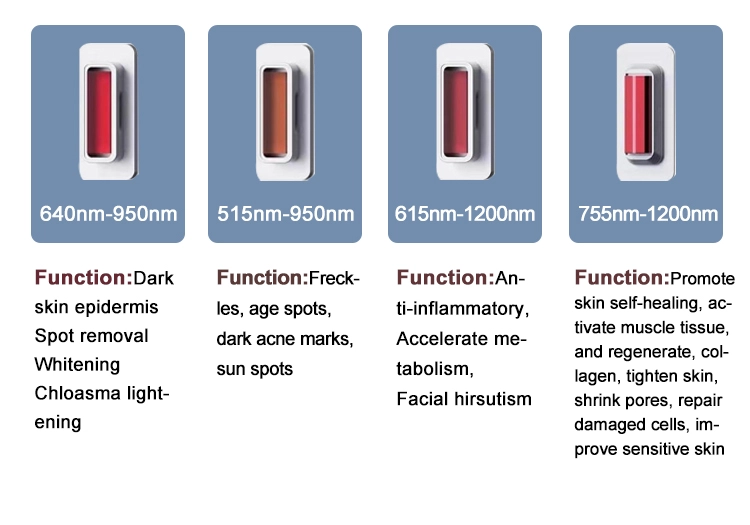

Handles:DPL handleFilters:9 Filters
480nm: Acne treatment
430nm: Vascular treatment
515nm: Spot removal
560nm: Whitening and skin rejuvenation
590nm: Redness reduction, sensitive&hormonal skin repair
640nm: Hair removal
550nm: Pigmentation removal
695nm: Oil control Pore tightening
750nm: Collogen boost, Skin tightening
Spot size:8x40mm, 10x10mm, 8x8mm
Energy:1-50J/cm2
Portable DPL machine
Xi’an Taibo Laser Beauty Company is the professional laser beauty euipment manufactuer with our own factory over 15 years produce experience and 15 years export experience.
Established in 2009, and having our own R&D, factory, international sales team, overseas distributors and after slaes services team, Taibo beauty takes the lead in applying advanced technologies. Through 15 years developing, we have built a reliable sales and services system. Our products are exported to more than 180 countries in worldwide market.Portable DPL machineis our new product.
Technical Characteristics

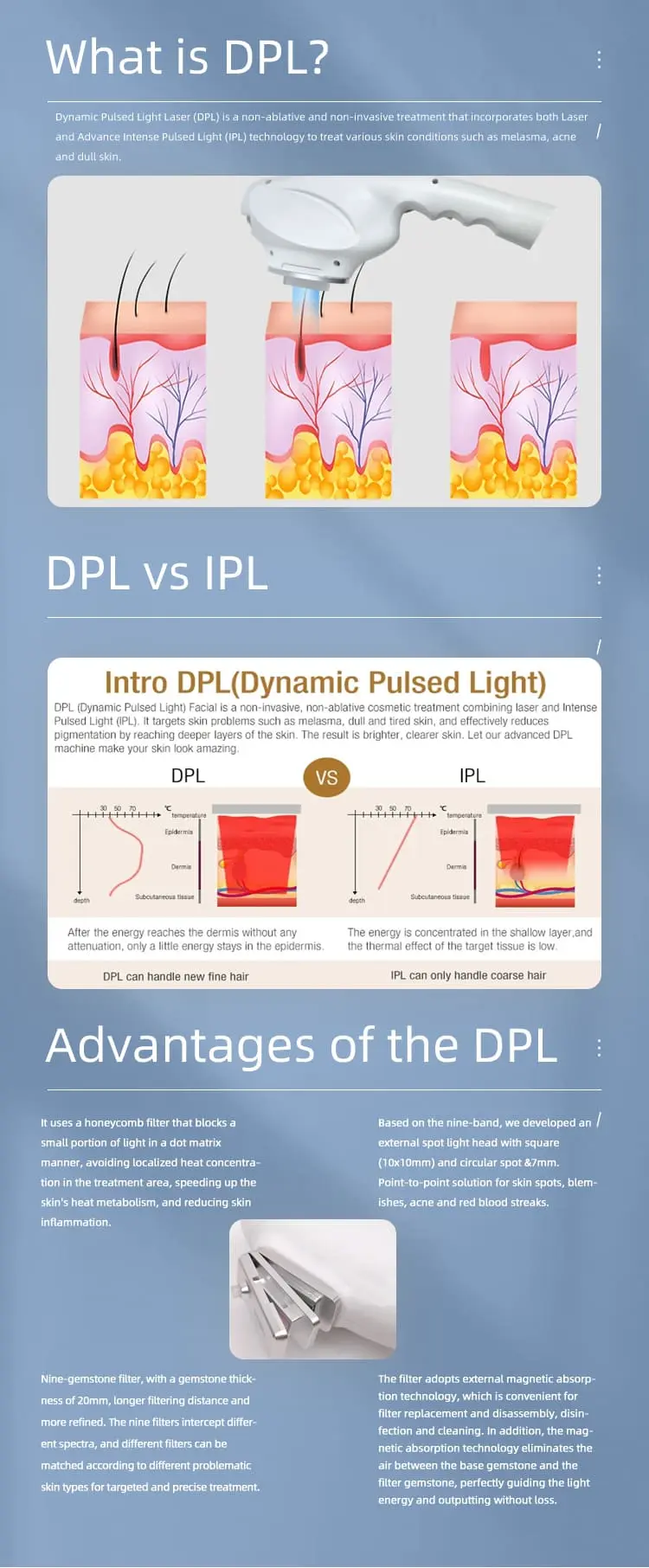

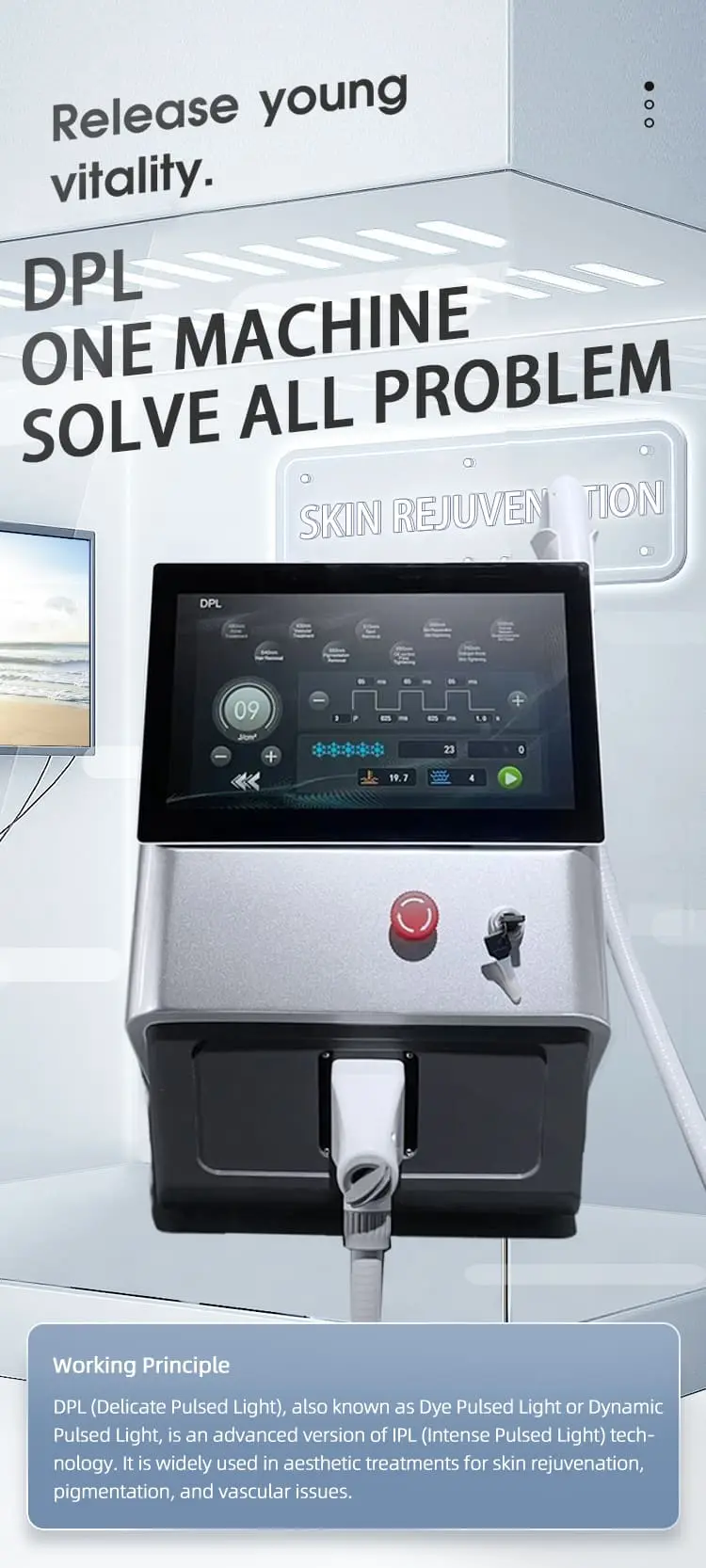

DPL (Delicate Pulsed Light), also known as Dye Pulsed Light or Dynamic Pulsed Light, is an advanced version of IPL (Intense Pulsed Light) technology. It is widely used in aesthetic treatments for skin rejuvenation, pigmentation, and vascular issues.
How to use
Hair Removal Treatment
Treatment Session:
3-5 treatments as one session.
Do the first 3 treatments every 2 weeks, then do every 4 weeks afterwards
Feelings in the treatment:
some stinging & heat sensation on skin, but be comfortable and acceptable by patients. Generally, 1-2 minutes later after treatment, a little red on skin and will disappear soon. In this case, can tweezers the hair root lightly, naturally shedding and no pain, which means the best effect.
Effect of cooling gel: cooling and light energy transfer
Operation:
1, Before the customer do hair removal treatment, let her shave hair 2-4 days ago at home. The hair should be 1-2mm when she do treatment.
2, Put the cooling gel on skin, gel thickness is around 2-3mm.
3, Set the suited parameters on machine display, press READY.
4, Hold the handle, touch cooling gel, move handle to do treatment, or spot by spot do treatment. Keep spot of overlap 1/3 size.
5, The same area can repeating treatment until some red cycle can be seen on hair
pore, or the hair can be easily moved by tweezers.
6, After treatment, clean the skin by warm water, and clean the handle crystal by cotton cloth.
Attentions:
a. In operation, vertically slide the probe on skin with balance force, make sure the probe touch skin firmly.
b. Press button on hand piece after the probe close touch on skin, avoid electric
shock.
c. Keep spot of overlap 1/3 size, Overlapped shoot makes sure to good effects of
treatment area.
Skin rejuvenation Treatment
NOTICE: Wrinkle treatment, Pigment treatment, same with Skin rejuvenation.
Treatment Session:
2-4 treatments as one session. Every 3-4 weeks for one treatment.
Feelings in the treatment:
some stinging & heat sensation on skin, but be comfortable and acceptable by patients. A little red but will disappear automatically soon
Effect of cooling gel: cooling and light energy transfer.
Operation:
1) Clean skin
2) If the treatment area has too much hair, shave the hair firstly
3) Spread the cooling gel on the treatment area before treatment, about 1-2mm thickness
4) Set the suited parameters on machine display, press READY.
5) Hold the handle, touch cooling gel, move handle to do treatment, or spot by spot do treatment. Keep spot of overlap 1/3 size.
6) After treatment, clean the skin by warm water, and clean the handle crystal by
cotton cloth.
Attentions:
a. In operation, vertically slide the probe on skin with balance force, make sure the probe touch skin firmly.
b. Press button on hand piece after the probe close touch on skin, avoid electric shock.
c. Keep spot of overlap 1/3 size, Overlapped shoot makes sure to good effects of
treatment area.
d. Increasing the energy according to feeling of customers, the best treatment
results are stinging sensation under tissue, which is acceptable.
Vascular treatment
Treatment Session:
3-5 treatments as one session. Every 3-4 weeks for one treatment. Because the
human metabolism period is 3-4 weeks, the stimulated capillary vessel tissues will be shrinking and steady along with the metabolism .
Feelings in the treatment:
some stinging & heat sensation on skin, but be comfortable and acceptable by patients. A little red but will disappear automatically soon
Effect of cooling gel: cooling and light energy transfer.
OEM Service
At Xi'an Taibo Laser, we understand that every business has unique needs. We offer a comprehensive q switched nd yag laser 1064 nm OEM service that allows you to customize the machine according to your brand’s requirements. From logo placement to interface design, our team is ready to help tailor the Portable DPL machine to fit your vision.
Certification
It complies with international standards and is certified with:
CE Certification: Ensures the laser meets European safety, health, and environmental protection standards.
ISO 13485: Demonstrates that our laser equipment adheres to rigorous quality management practices for medical devices.
Shipment

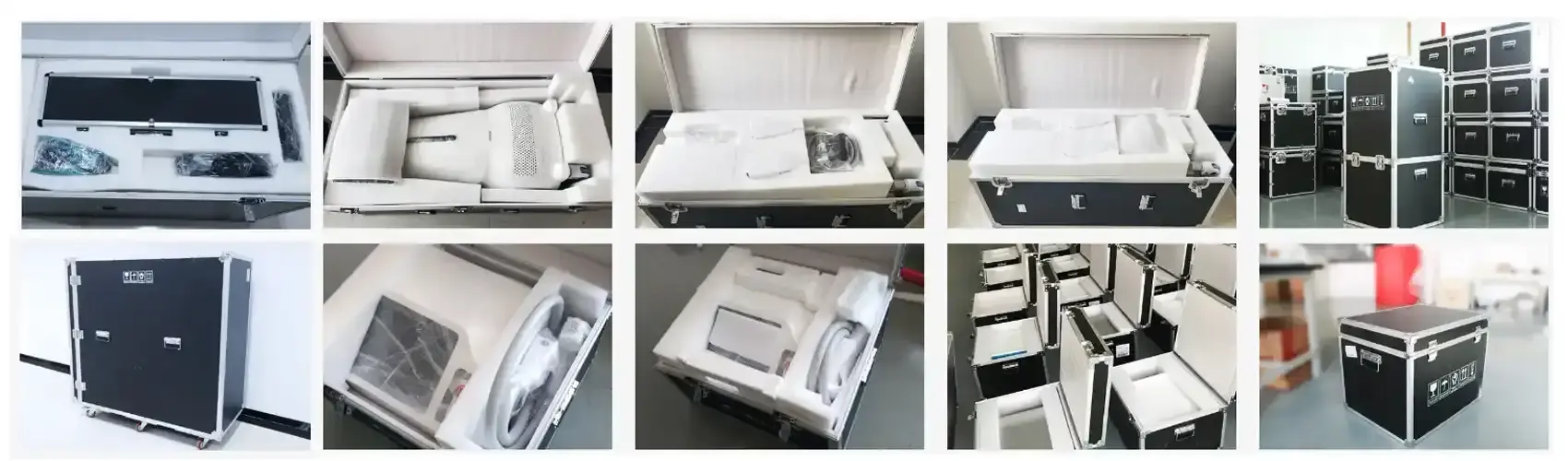

Package
Contact Us
For more information or inquiries, please contact us at the Portable DPL machine, please contact us at susan@taibobeauty.com or WhatsApp +8618292082658
